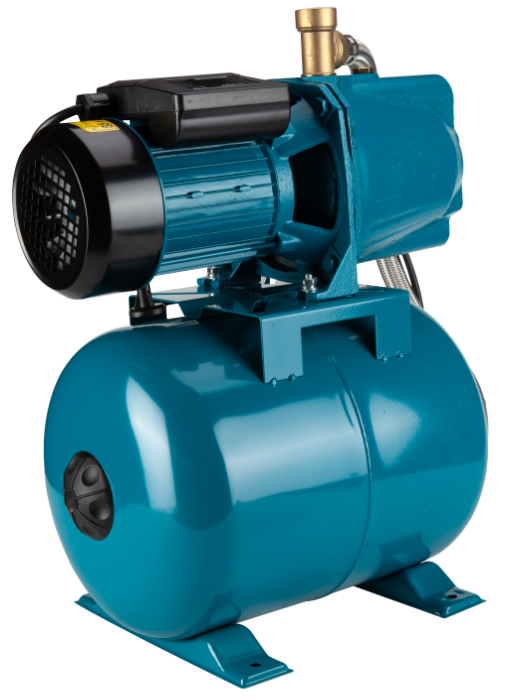

This domestic water pressure booster set is designed for the automatic water supply of homes, household installations or irrigation systems, using water from wells, boreholes or storage tanks. Thanks to the built-in self-adapting pressure switch, the pump automatically sets the start and stop pressure according to the installation. If the automatically set start pressure does not meet the installation requirements, it can be adjusted manually. It is equipped with a filling port for easy priming of the pump before operation.
The system operates automatically, starting and stopping the pump according to the set pressure, providing comfort and efficiency in use.
With a power of 750 W, the booster set allows suction of water from a depth of up to 9 m and pumping it to a maximum head of 48 m, ensuring a maximum flow rate of 50 L/min. The expansion vessel with a capacity of 24 L helps reduce the number of pump starts, extending the service life of the equipment. The pump body is made of corrosion-resistant cast iron, offering increased durability and long-term reliability in operation. The tank is made of electrostatically painted steel, providing high strength, and the interior is fitted with a high-quality EPDM membrane, an elastic material resistant to pressure variations.
Technical data:
Rated power: 750 W
Maximum suction depth: 9 m
Maximum pumping height: 48 m
Maximum flow rate: 50 L/min
Maximum operating pressure: 4.8 bar
Tank volume: 24 L
Maximum pumped liquid temperature: 35°C
Filter: No
Protections: thermal, with automatic reset
Connection: 1”
Protection class: IP54
Noise level: 84 dB(A)
Net weight: ~ 17.5 kg
Booster sets must be installed in locations protected from the weather and away from areas with high humidity.
To protect the booster set and the installation, it is recommended to install a filter for particles and impurities or, where appropriate, a filter against lime scale deposits on the supply line, BEFORE the booster set.
Do not use the product for extracting hydrocarbons (fuels, oils, solvents, etc.) or other liquids.
